شفاط ايطالي 6 انش صامت داخلي VORTICE LINEO 150mm T 6 inches In-Line

شفاط ايطالي 6 انش VORTICE LINEO 150 T – خدمة 30000 ساعة تشغيل

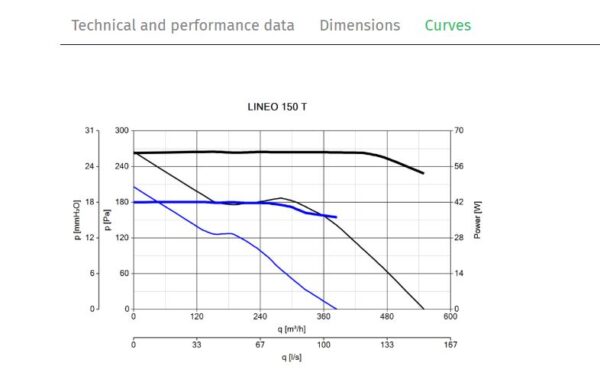

قوة الشفط 550 m3/h
لحساب كمية الهواء المطلوب وشفطها من الحمام أو المطبخ بالمتر مكعب{ الطول * العرض * الارتفاع * 10 }

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 150 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• Equipped with an electronic timer for automatic operation at maximum speed, which can be set in the 3-20′ range at the installation (default setting 3′).
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.

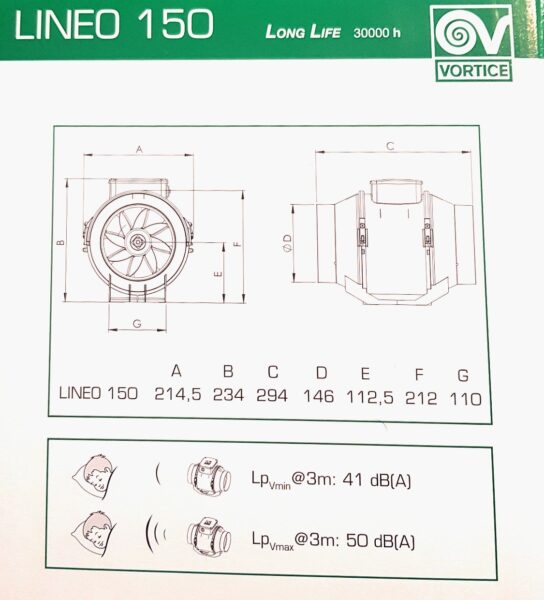

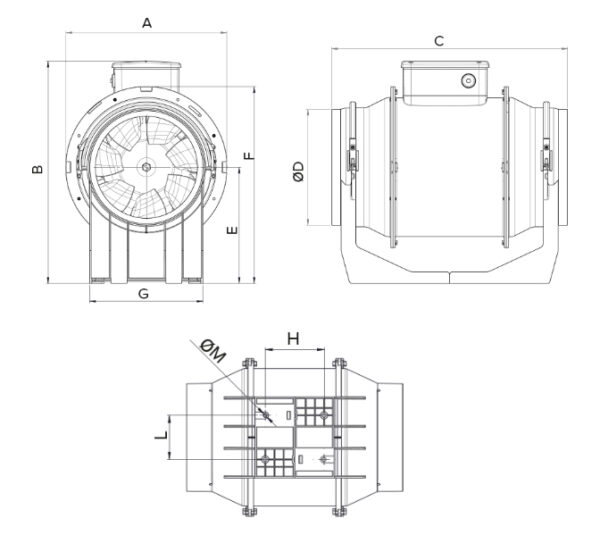

القياسات

• Size A (mm)

  214,5
• Size B (mm)

  234
• Size C (mm)

  294
• Size D (mm)

  146
• Size E (mm)

  112,5
• Size F (mm)

  212
• Size G (mm)

  110
• Size H (mm)

  80
• Size L (mm)

  60
• Size M (mm)
